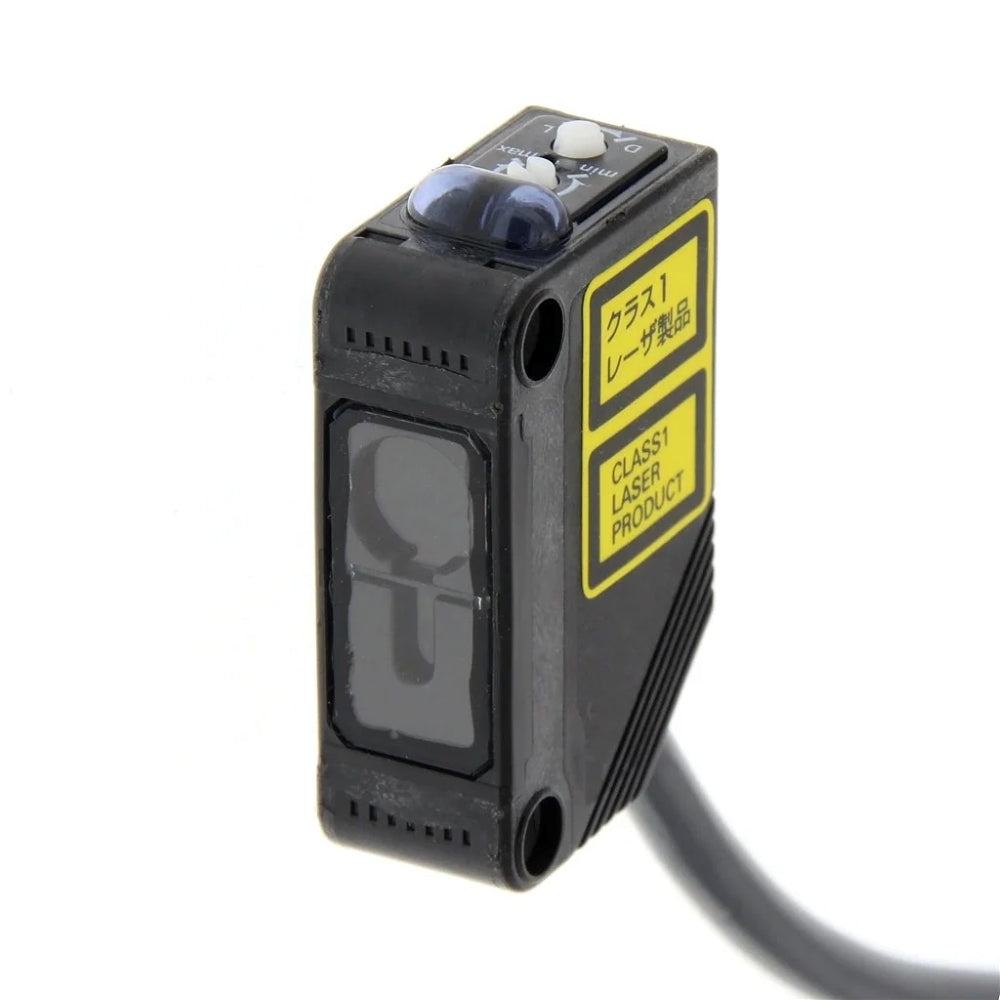

E3Z-LR61-UL Omron Photoelectric Sensor

Sensing distance

0.2–7 m with E39-R12 reflector

Sensing method

Retro-reflective with MSR

Light source

Red laser diode, 655 nm

Laser safety class

Class 1

Output type

NPN open collector

Output mode

Light-ON / Dark-ON selectable

Supply voltage

12–24 V DC ±10%

Maximum current consumption

30 mA

Maximum load current

100 mA

Maximum load voltage

26.4 V DC

Response time

1 ms max.

Minimum detectable object

6 mm diameter at 3 m

Standard sensing object

Opaque object, 75 mm diameter min.

Spot diameter

5 mm max. at 3 m

Sensitivity adjustment

Single-turn adjuster

Protection rating

IP67

Cable length

2 m

Housing material

PBT plastic

Lens material

Methacrylic resin

Operating temperature

−10°C to +55°C

Shape

Rectangular

Weight

Approx. 65 g packed
