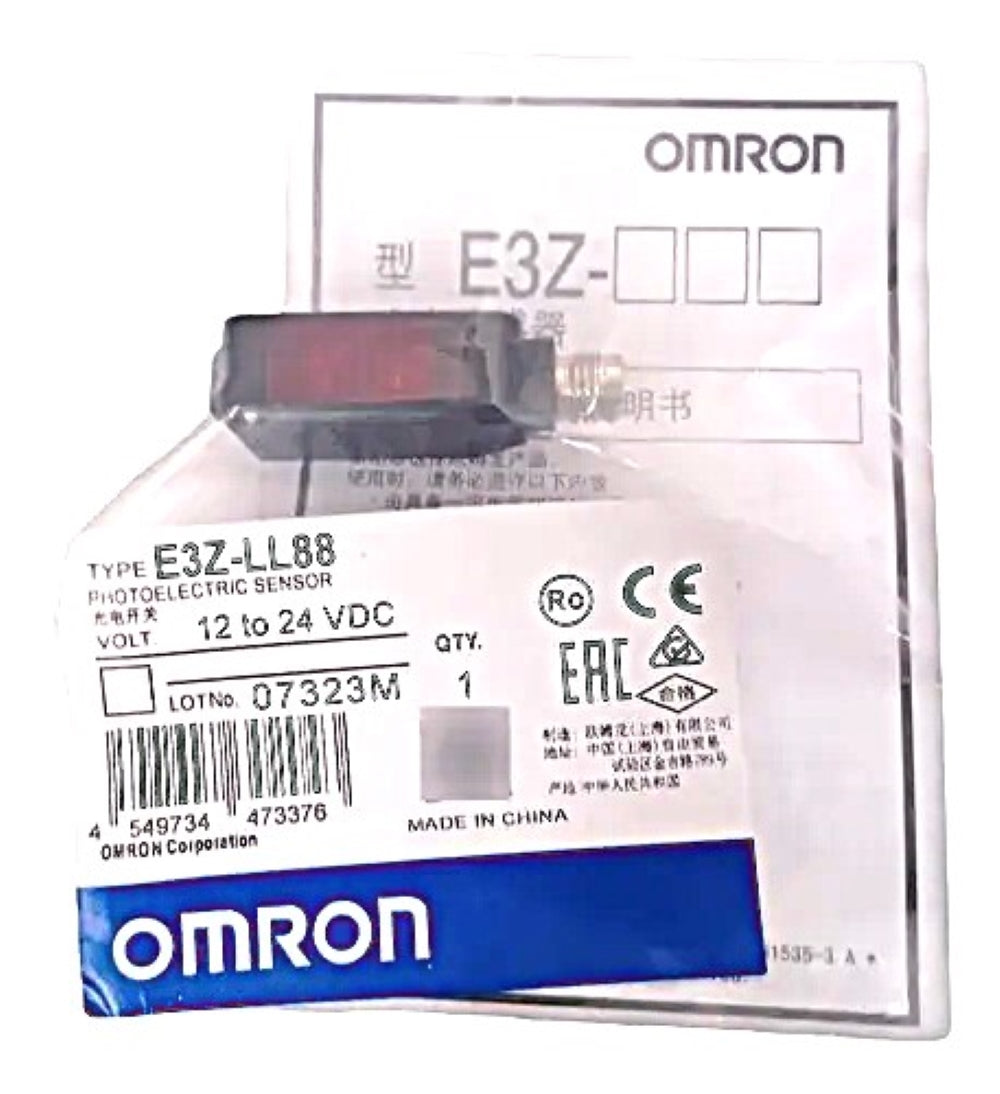

E3Z-LL88 Omron Photoelectric Sensor

Brand

Omron

Model

E3Z-LL88

Sensor type

Laser photoelectric sensor

Sensing method

Background suppression (BGS)

Sensing distance

25–300 mm

Setting distance

40–300 mm

Light source

Red laser diode

Wavelength

655 nm

Laser safety class

Class 1

Supply voltage

12–24 V DC ±10%

Current consumption

30 mA maximum

Output type

PNP open collector

Maximum load current

100 mA

Maximum load voltage

26.4 V DC

Output mode

Light-ON / Dark-ON selectable

Response time

0.5 ms maximum

Spot diameter

0.5 mm at 300 mm

Minimum detectable object

0.2 mm diameter, reference value

Connection

M8, 4-pin connector

Cable

Separate connector cable required

Housing material

PBT

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Protection rating

IP67
