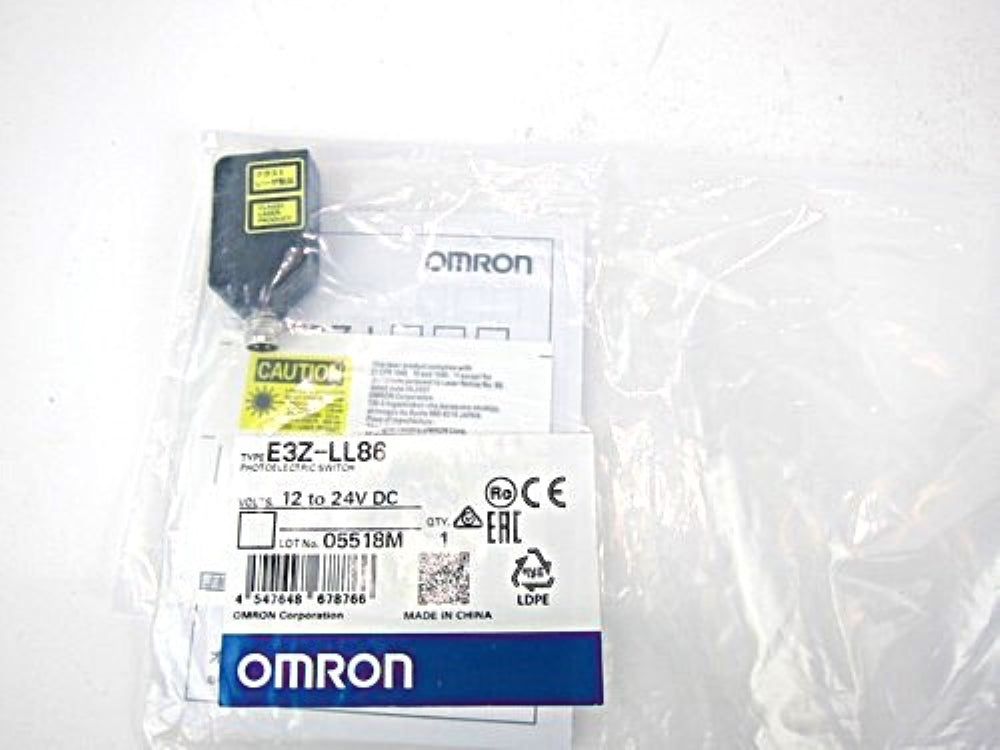

E3Z-LL86 Omron Photoelectric Sensor

Brand

Omron

Model

E3Z-LL81

Sensor type

Laser photoelectric sensor

Sensing method

Distance-settable, background suppression

Sensing distance on white paper

20–300 mm

Sensing distance on black paper

20–160 mm

Setting range on white paper

40–300 mm

Setting range on black paper

40–160 mm

Light source

Red laser diode

Wavelength

655 nm

Laser safety class

Class 1

Supply voltage

12–24 V DC ±10%

Current consumption

30 mA maximum

Output type

PNP open collector

Maximum load current

100 mA

Maximum load voltage

26.4 V DC

Switching mode

Light-ON / Dark-ON selectable

Response time

1 ms maximum

Minimum detectable object

0.2 mm diameter, reference condition

Spot diameter

0.5 mm maximum at 300 mm

Differential distance

5% maximum of setting distance

Connection

Pre-wired cable

Standard cable length

2 m

Housing material

PBT

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Protection rating

IP67

Operating temperature

−10°C to +55°C

Storage temperature

−25°C to +70°C

Operating humidity

35–85% RH
