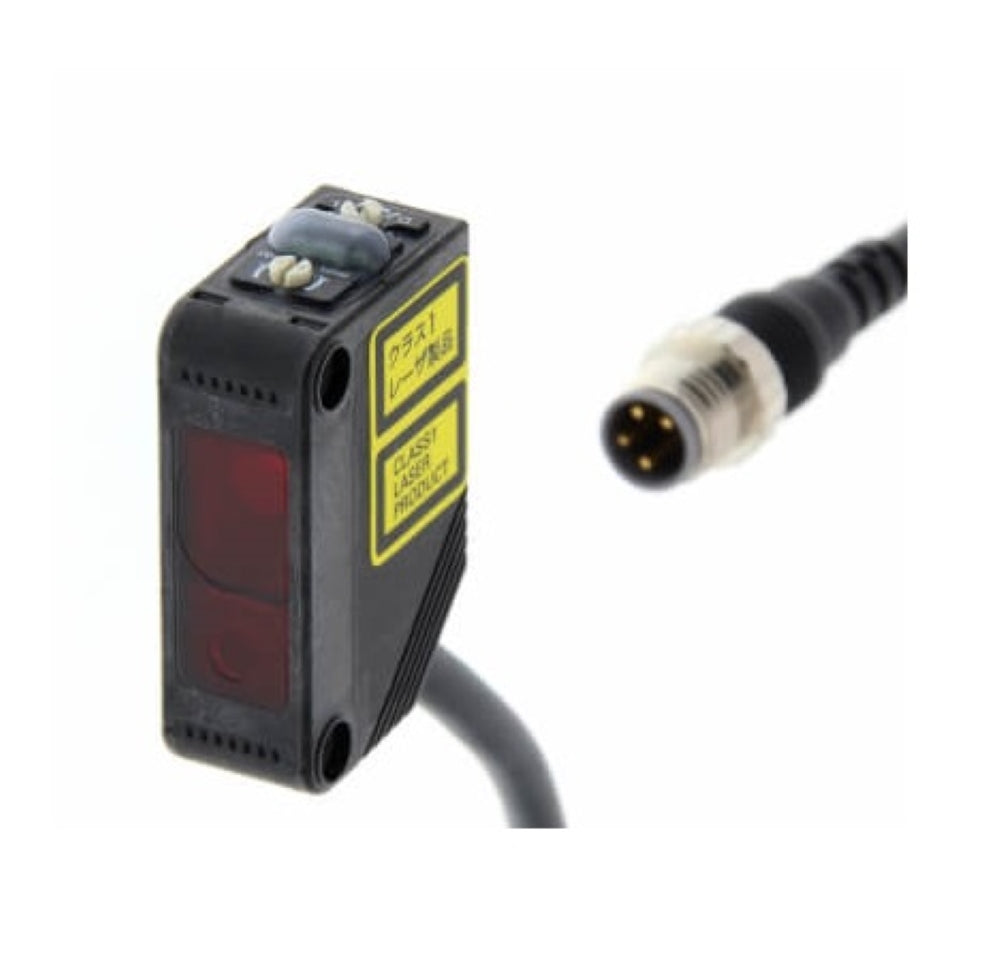

E3Z-LL81-UL Omron Photoelectric Sensor

Model Number

E3Z-LL81-UL

Sensing Distance

20–300 mm (white paper)

Sensing Distance for Black Paper

20–160 mm

Light Source

Red Laser Diode

Wavelength

655 nm

Laser Safety Class

Class 1

Supply Voltage

12–24 V DC

Output Type

PNP Open Collector

Output Mode

Light-ON / Dark-ON selectable

Maximum Load Current

100 mA

Response Time

1 ms maximum

Connection Type

Pre-wired cable

Cable Length

2 m

Protection Rating

IP67

Housing Material

PBT

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Operating Temperature

-10°C to +55°C

Sensitivity Adjustment

Single-turn adjustment
