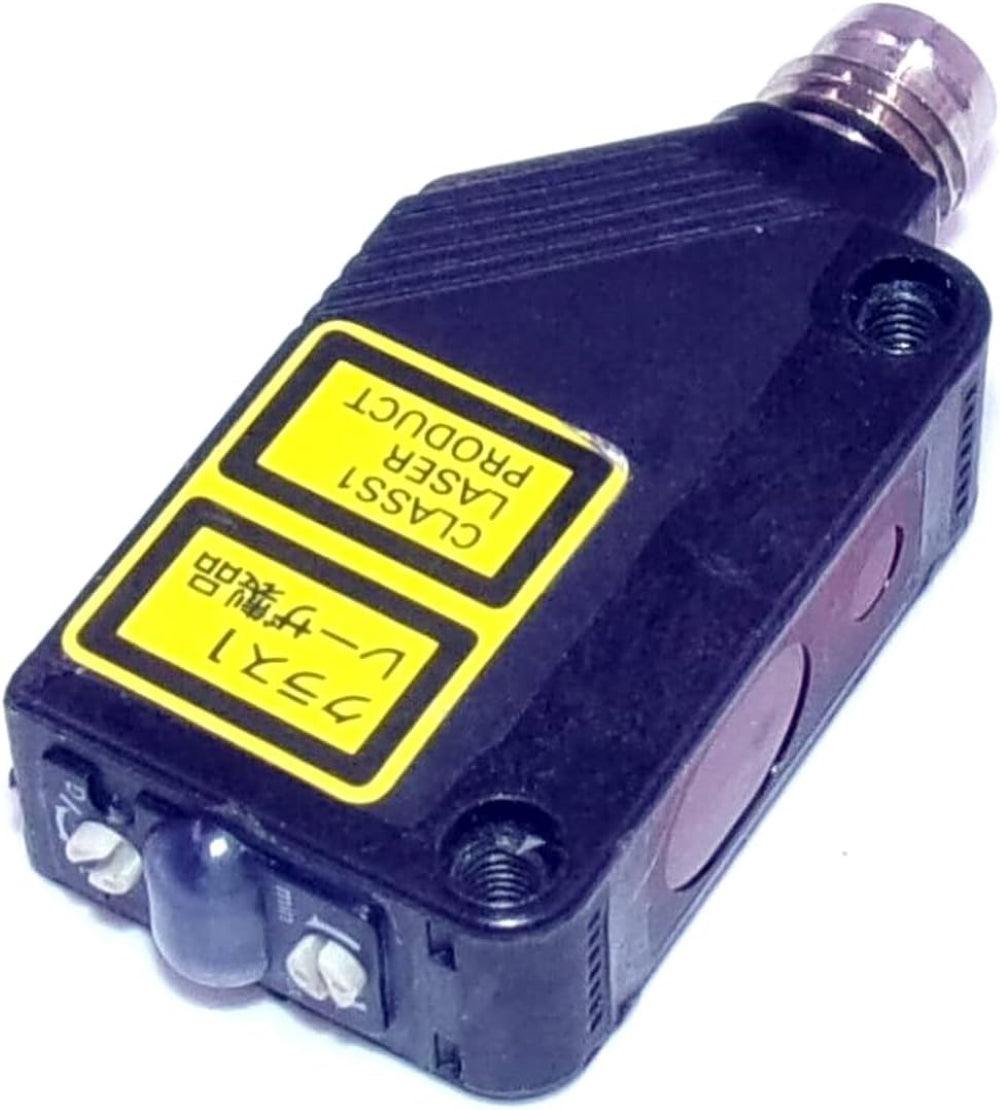

E3Z-LL68 Omron Photoelectric Sensor

Brand

Omron

Model

E3Z-LL68

Product type

Laser photoelectric sensor

Sensing method

Distance-setting, BGS

Sensing distance

25–300 mm (white paper)

Sensing distance on black paper

25–100 mm

Setting distance

40–300 mm (white paper)

Light source

Red laser diode

Wavelength

655 nm

Laser class

Class 1

Supply voltage

12–24 V DC ±10%

Current consumption

30 mA maximum

Output type

NPN open collector

Maximum load current

100 mA

Maximum load voltage

26.4 V DC

Output mode

Light-ON / Dark-ON selectable

Response time

0.5 ms maximum

Minimum detectable object

0.2 mm diameter, reference value

Spot size

0.5 mm maximum at 300 mm

Differential distance

5% maximum of set distance

Connection

M8, 4-pin connector

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Housing material

PBT

Lens material

Modified polyarylate

Protection rating

IP67

Operating temperature

−10°C to +55°C

Storage temperature

−25°C to +70°C

Operating humidity

35–85% RH

Approximate packed weight

20 g
