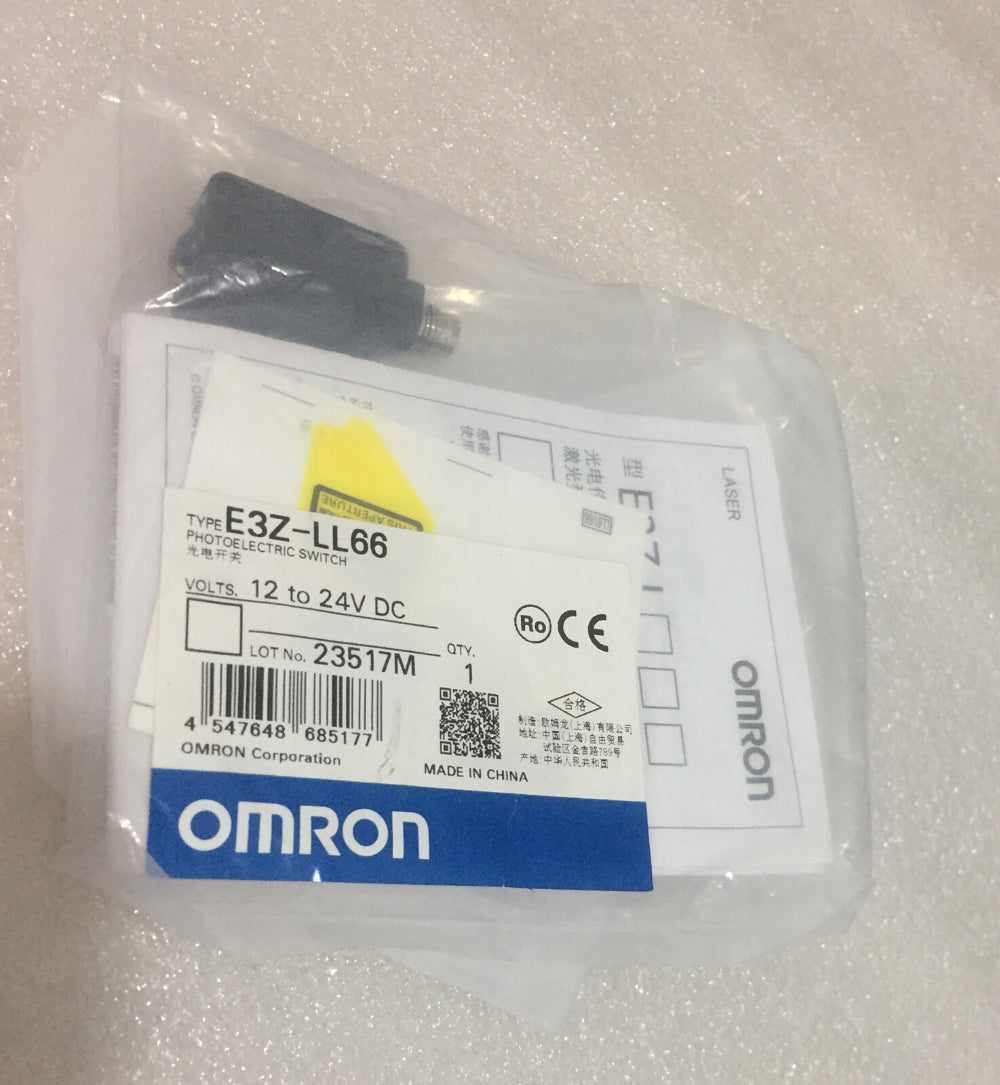

E3Z-LL66-UL Omron Photoelectric Sensor

Sensing Distance

20–300 mm (White paper)

Black Paper Sensing Distance

20–160 mm

Light Source

Red Laser Diode

Wavelength

655 nm

Laser Class

Class 1

Output Type

NPN Open Collector

NO/NC Mode

Light-ON / Dark-ON selectable

Supply Voltage

12–24 V DC

Maximum Load Current

100 mA

Response Time

1 ms

Connection Type

M8, 4-pin connector

Housing Shape

Rectangular

Housing Material

PBT

Protection Rating

IP67

Operating Temperature

−10°C to +55°C

Spot Size

0.5 mm max. at 300 mm

Adjustment

Single-turn sensitivity adjustment
