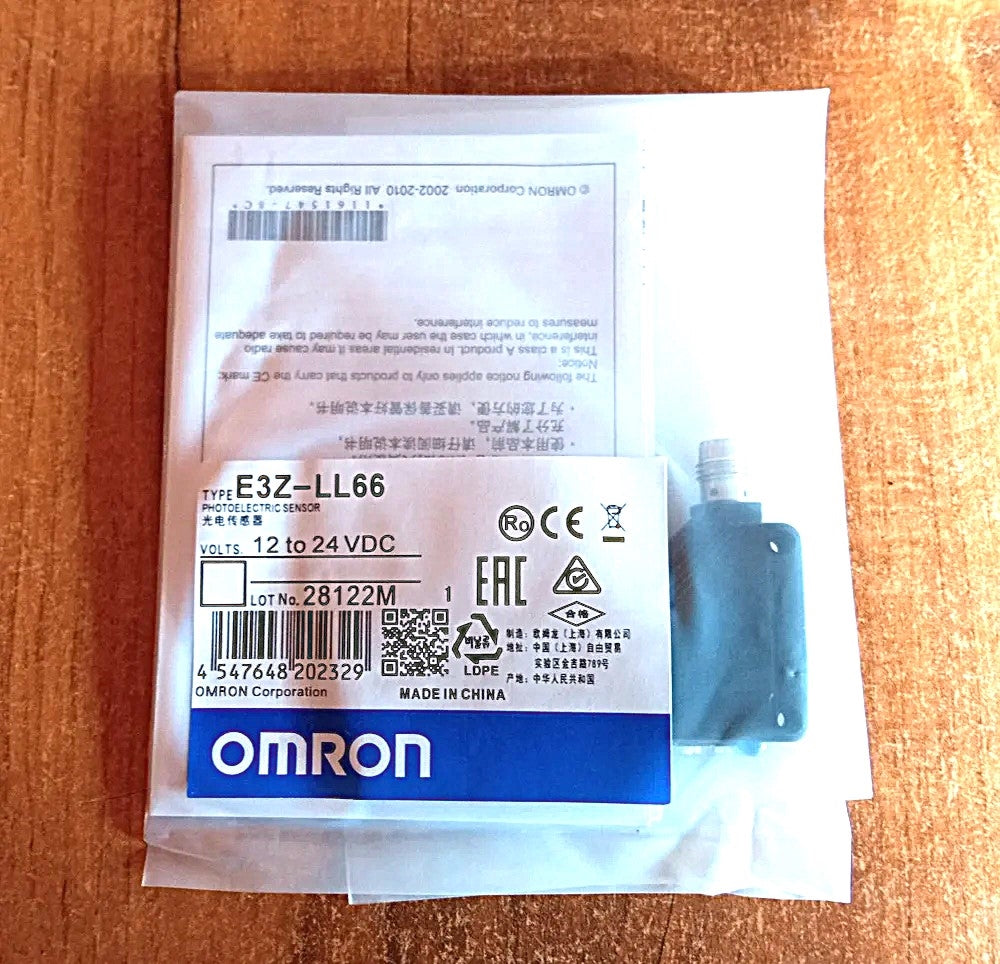

E3Z-LL66 Omron Photoelectric Sensor

Brand

Omron

Model

E3Z-LL66

Series

E3Z-LL

Sensor type

Laser photoelectric sensor

Sensing method

Background suppression (BGS)

Sensing distance

20–300 mm

Minimum sensing distance

20 mm

Light source

Red laser diode

Wavelength

655 nm

Laser safety class

Class 1

Output type

NPN open collector

Output operation

Light-ON / Dark-ON selectable

Supply voltage

12–24 VDC ±10%

Maximum load current

100 mA

Maximum load voltage

26.4 VDC

Response time

1 ms maximum

Connection

M8, 4-pin connector

Integral cable

No

Housing material

PBT

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Spot size

Approximately 0.5 mm

Protection rating

IP67

Operating temperature

−10°C to +55°C

Storage temperature

−25°C to +70°C

Sensitivity adjustment

Manual distance adjustment

Indicators

Orange operation indicator and green stability indicator

Weight

Approximately 20 g, packed

Shape

Rectangular
