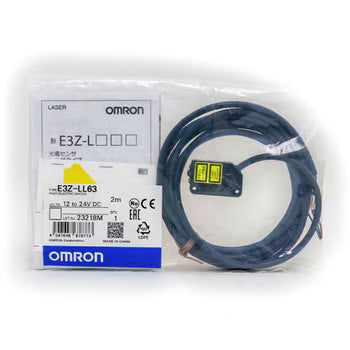

E3Z-LL63 Omron Photoelectric Sensor

Brand

Omron

Model

E3Z-LL63

Sensor type

Laser photoelectric sensor

Sensing method

Distance-settable, background suppression (BGS)

Sensing distance

25–300 mm (white paper); 25–100 mm (black paper)

Set distance range

40–300 mm (white); 40–100 mm (black)

Light source

Red laser diode, 655 nm

Laser safety class

Class 1

Spot diameter

0.5 mm maximum at 300 mm

Minimum detectable object

0.2 mm diameter, reference value

Supply voltage

12–24 V DC ±10%

Current consumption

30 mA maximum

Output type

NPN open collector

Output current

100 mA maximum

Maximum load voltage

26.4 V DC

Switching mode

Light-ON / Dark-ON selectable

Response time

0.5 ms maximum

Sensitivity adjustment

Five-turn adjustment

Protection rating

IP67

Connection

Pre-wired cable

Cable length

2 m

Housing material

PBT

Operating temperature

−10°C to +55°C

Storage temperature

−25°C to +70°C

Operating humidity

35–85% RH

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Approximate packed weight

65 g
