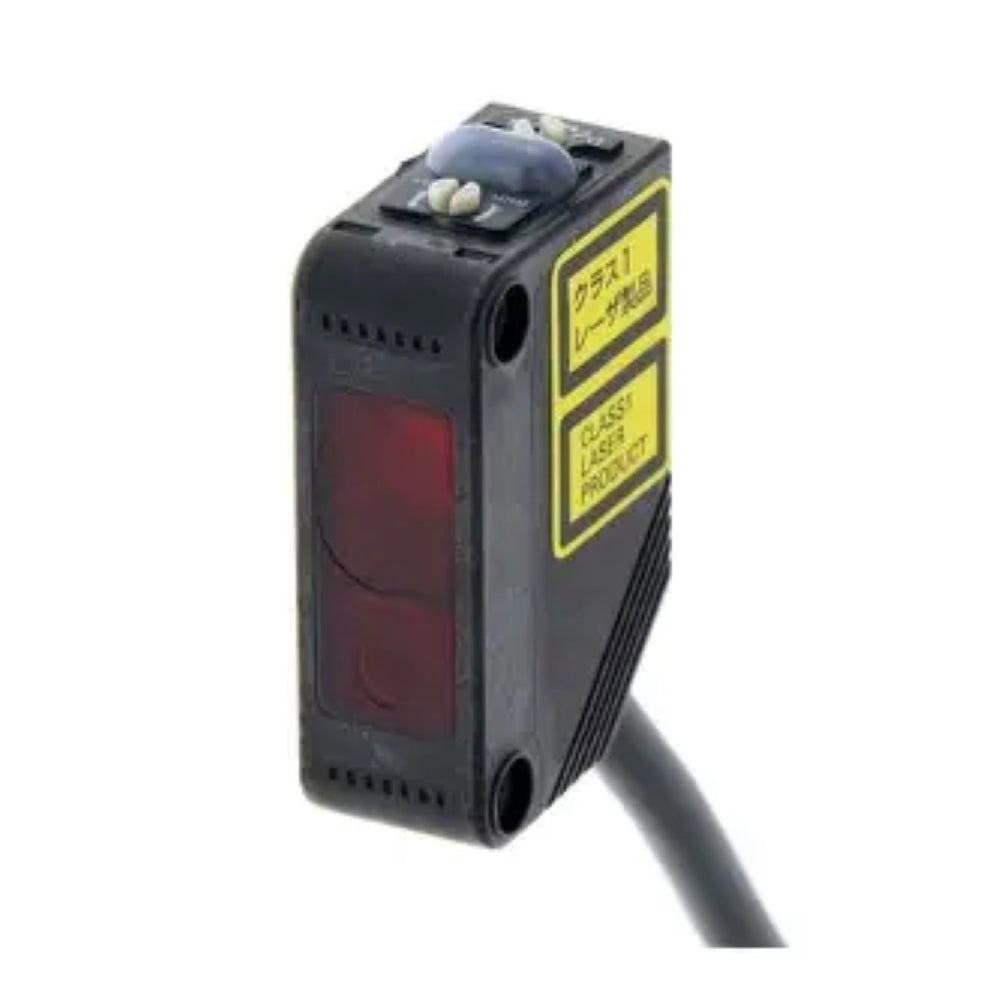

E3Z-LL61-UL Omron Photoelectric Sensor

Sensing method

Distance-setting, triangulation (BGS)

Sensing distance

20–300 mm on white paper; 20–160 mm on black paper

Minimum setting distance

20 mm

Maximum setting distance

300 mm

Light source

Red laser diode, 655 nm

Laser safety class

Class 1

Output type

NPN open collector

Output mode

Light-ON / Dark-ON selectable

Supply voltage

12–24 V DC ±10%

Maximum load current

100 mA

Maximum load voltage

26.4 V DC

Residual voltage

1 V max. below 10 mA; 2 V max. at 10–100 mA

Response time

1 ms max.

Differential travel

5% max. of set distance

Black/white error

5% at 160 mm

Protection rating

IP67

Cable length

2 m

Housing material

PBT

Display material

Polycarbonate

Lens material

Modified polyarylate resin

Operating temperature

−10°C to +55°C

Sensitivity adjustment

Single-turn adjuster

Shape

Rectangular

Packed weight

Approx. 120 g
