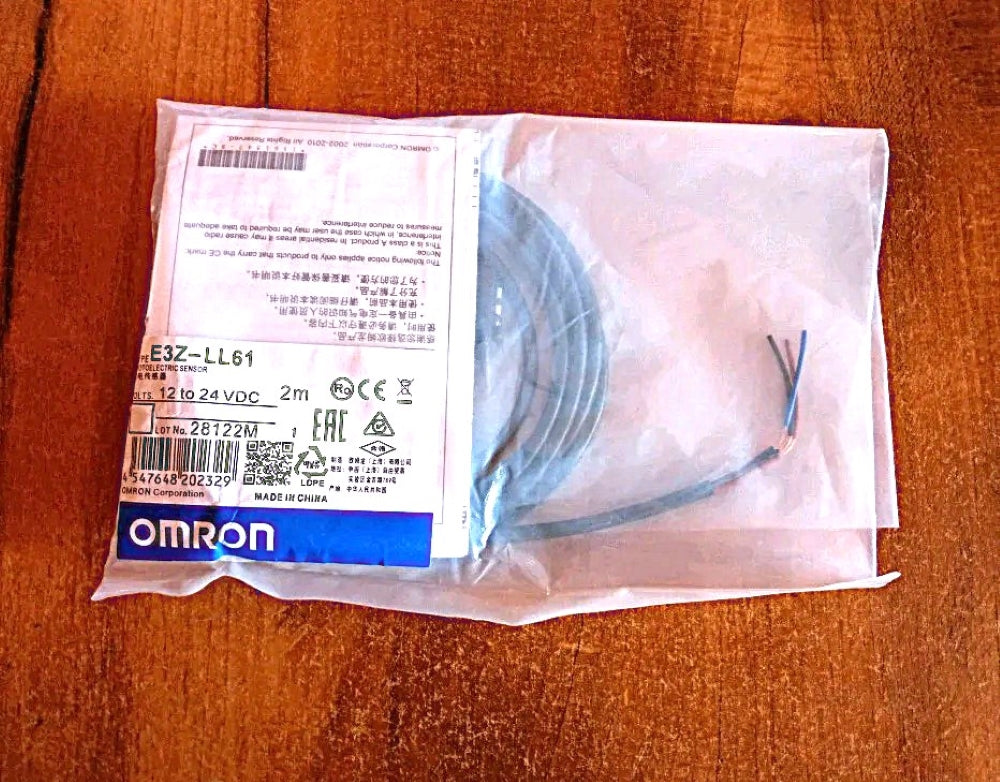

E3Z-LL61 Omron Photoelectric Sensor

Series

E3Z-LL

Sensing method

Distance-setting with background suppression

Sensing distance

20–300 mm on white paper (100 × 100 mm)

Sensing distance on black paper

20–160 mm

Setting range

40–300 mm on white paper

Spot diameter

0.5 mm maximum at 300 mm

Minimum detectable object

0.2 mm diameter reference value

Light source

Red laser diode

Wavelength

655 nm

Laser safety class

Class 1

Supply voltage

12–24 VDC ±10%

Current consumption

30 mA maximum

Output type

NPN open collector

Output operation

Light-ON / Dark-ON selectable

Maximum load current

100 mA

Maximum load voltage

26.4 VDC

Residual output voltage

1 V max. below 10 mA; 2 V max. at 10–100 mA

Response time

1 ms maximum

Sensitivity adjustment

5-turn adjustment on standard E3Z-LL61

Connection type

Pre-wired cable

Standard cable length

2 m

Housing material

PBT

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Protection rating

IP67

Operating temperature

−10°C to +55°C

Storage temperature

−25°C to +70°C

Operating humidity

35–85% RH

Protection circuits

Reverse power polarity, output short-circuit and output reverse polarity protection

Shape

Rectangular
