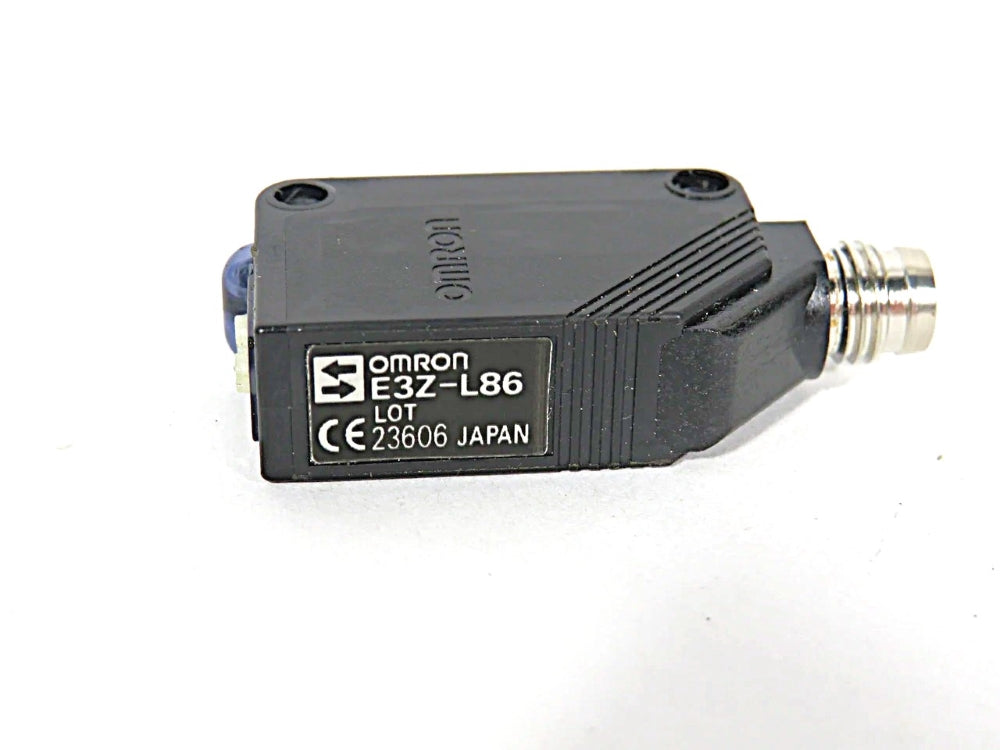

E3Z-L86 Omron Photoelectric Sensor

Brand

Omron

Model Number

E3Z-L86

Product Type

Photoelectric Sensor

Shape

Rectangular Cuboid

Sensing Method

Narrow Beam Diffuse Reflective

Sensing Distance

90 ± 30 mm

Minimum Sensing Distance

60 mm

Maximum Sensing Distance

120 mm

Standard Sensing Object

White Paper 100 × 100 mm

Output Type

PNP

Output Configuration

Open Collector

Output Mode

Light ON and Dark ON Selectable

Supply Voltage

12 to 24 VDC ±10%

Current Consumption

30 mA Max

Maximum Load Current

100 mA

Maximum Load Voltage

26.4 VDC

Light Source

Red LED

Wavelength

650 nm

Spot Diameter

2.5 mm Typical at 90 mm

Minimum Detectable Object

0.1 mm Copper Wire Typical

Response Time

1 ms Max

Connection Type

M8 4 Pin Connector

Cable Length

0 m Sensor Only

Housing Material

PBT

Lens Material

Modified Polyarylate

Protection Rating

IP67

Operating Temperature

-25°C to +55°C

Operating Humidity

35% to 85% RH

Sensitivity Adjustment

One Turn Adjuster

Dimensions W × H × D

10.8 × 31 × 20 mm

Weight

Approx. 20 g Packed

Switching Frequency

Not specified in the cited model data

Mounting

Screw Mounting with Bracket
