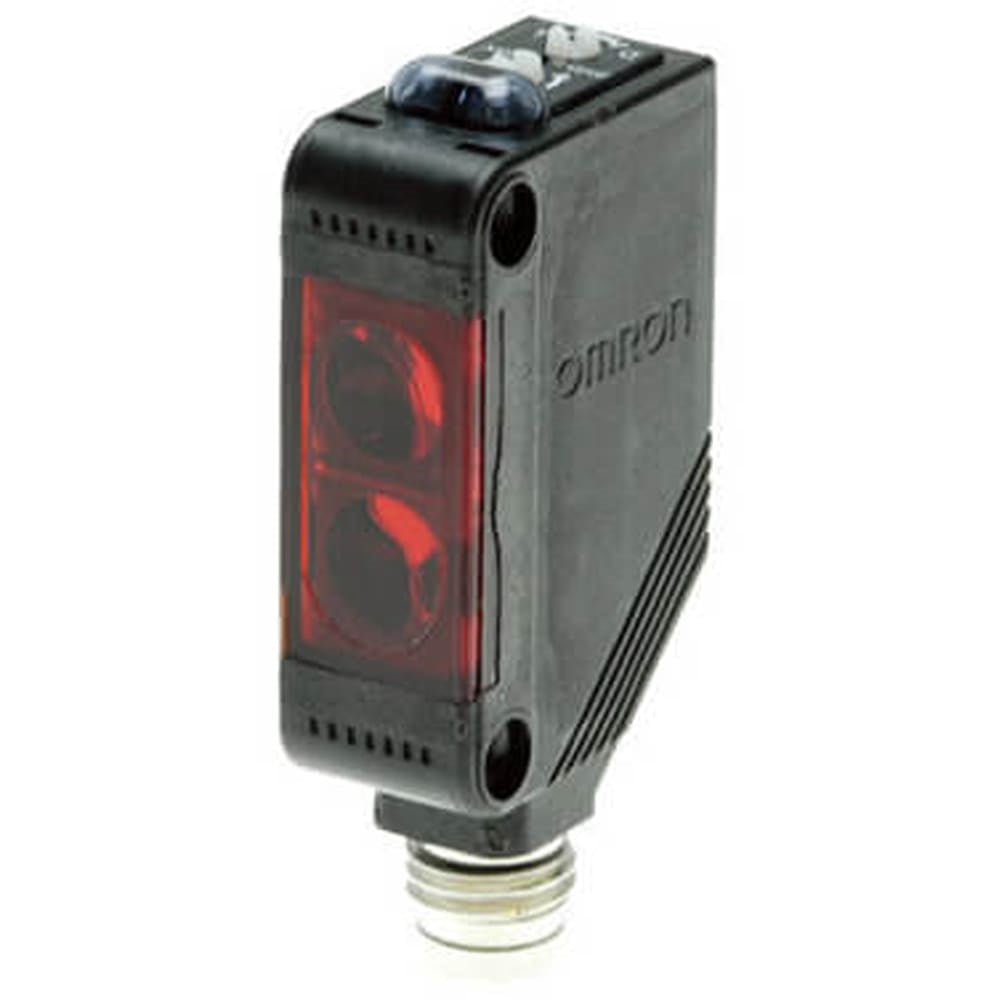

E3Z-L86-IL3 Omron Photoelectric Sensor

Sensing Distance

60–120 mm

Reference Sensing Distance

90 mm

Light Source

Red LED, 650 nm

Spot Diameter

2.5 mm at 90 mm

Minimum Detectable Object

0.1 mm copper wire (reference)

Supply Voltage

10–30 V DC

Current Consumption

30 mA max.

Output Type

PNP Open Collector

Maximum Load Voltage

30 V DC

Maximum Load Current

100 mA

Output Mode

Light-ON / Dark-ON selectable

Response Time

1 ms max.

IO-Link Version

1.1

IO-Link Baud Rate

COM3, 230.4 kbps

Minimum Cycle Time

1 ms

Connection Type

M8, 4-pin connector

Cable Length

0 m, connector model

Protection Rating

IP67

Housing Material

PBT

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Operating Temperature

−25°C to +55°C

Operating Humidity

35–85% RH, non-condensing

Weight

Approx. 20 g, packed

Switching Frequency

Not separately specified in the cited model data
