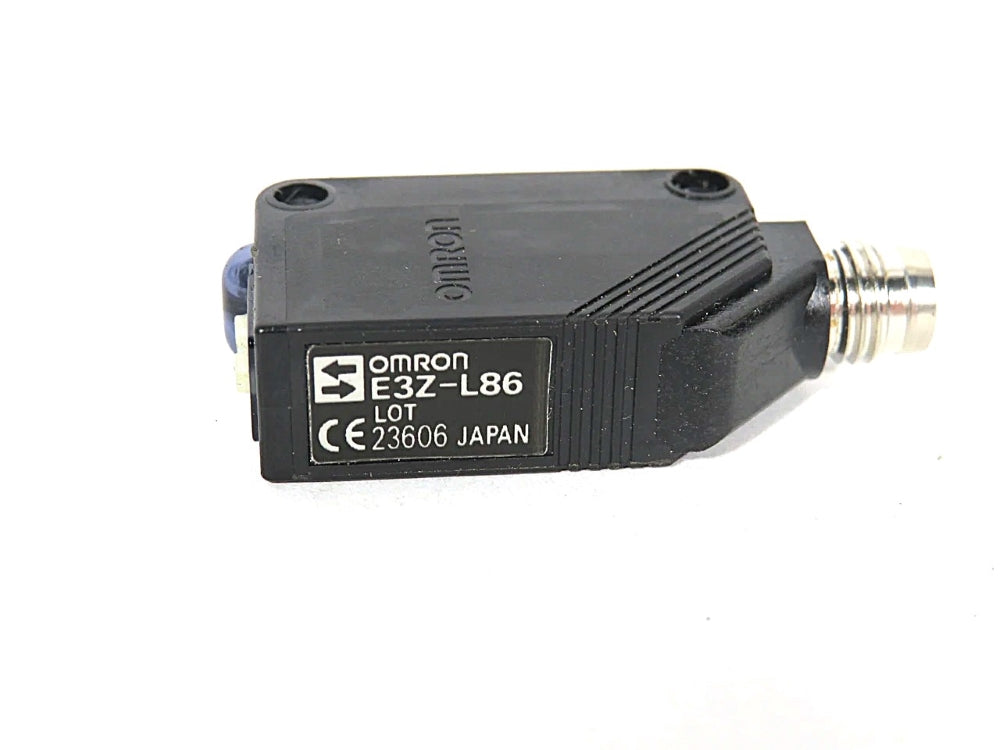

E3Z-L86-IL2 Omron Photoelectric Sensor

Model Number

E3Z-L86-IL2

Sensor Type

Photoelectric Sensor

Sensing Method

Diffuse Reflective, Narrow Beam

Sensing Distance

90 mm nominal; 60–120 mm range

Light Source

Red LED, 650 nm

Output Type

PNP Open Collector

Output Mode

Light-ON / Dark-ON Selectable

Supply Voltage

10–30 V DC

Current Consumption

30 mA max.

Maximum Load Current

100 mA

Response Time

1 ms max.

Connection Type

M8, 4-pin connector

Cable Length

0 m; connector type

IO-Link Version

1.1

IO-Link Baud Rate

COM2, 38.4 kbps

Minimum Cycle Time

2.3 ms

Protection Rating

IP67

Housing Material

PBT

Sensor Shape

Rectangular

Dimensions (W × H × D)

Approx. 10.8 × 31 × 20 mm

Spot Diameter

Approx. 2.5 mm at 90 mm

Minimum Detectable Object

Approx. 0.1 mm copper wire

Switching Frequency

Not specified in the cited model data

Operating Temperature

−25 to +55°C

Weight

Approx. 20 g, packed M8 model
