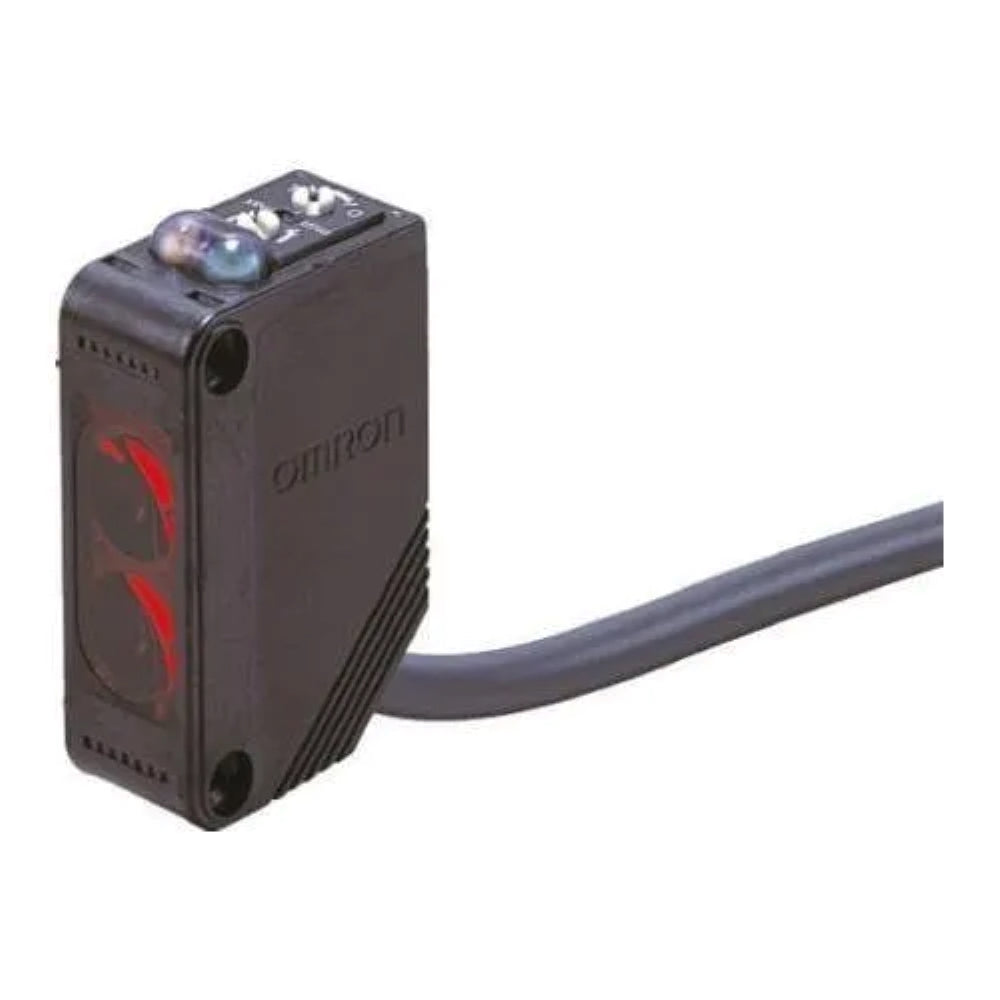

E3Z-L81-IL3 Omron Photoelectric Sensor

Model number

E3Z-L81-IL3

Sensing method

Diffuse-reflective, narrow beam

Sensing distance

60–120 mm

Reference distance

90 mm

Standard target

White paper, 100 × 100 mm

Light source

Red LED, 650 nm

Spot diameter

2.5 mm at 90 mm

Minimum detectable object

0.1 mm copper wire (reference)

Output type

PNP open collector

Output operation

Light-ON / Dark-ON selectable

Supply voltage

10–30 V DC

Current consumption

30 mA max.

Maximum load voltage

30 V DC

Maximum load current

100 mA

Response time

1 ms max.

IO-Link version

1.1

IO-Link baud rate

COM3, 230.4 kbps

Minimum cycle time

1 ms

Connection type

Pre-wired cable

Cable length

2 m

Housing material

PBT

Lens material

Modified polyarylate

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Protection rating

IP67

Operating temperature

−25°C to +55°C

Storage temperature

−40°C to +70°C

Short-circuit protection

Yes

Reverse-polarity protection

Yes
