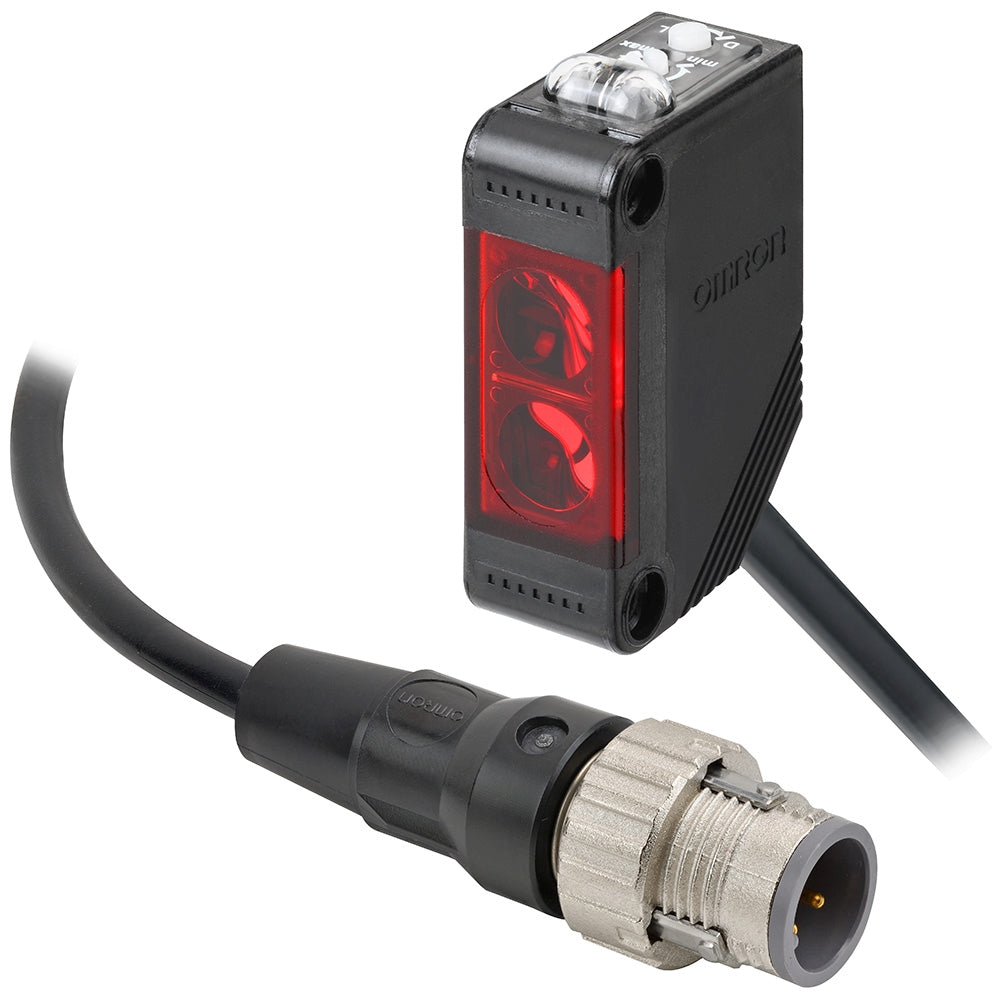

E3Z-L81-IL2 Omron Photoelectric Sensor

Manufacturer

Omron

Model number

E3Z-L81-IL2

Sensing method

Diffuse-reflective, narrow beam

Sensing distance

60–120 mm

Reference sensing distance

90 mm

Standard target

White paper, 100 × 100 mm

Light source

Red LED, 650 nm

Spot diameter

2.5 mm at 90 mm

Minimum detectable object

0.1 mm diameter copper wire (reference)

Output type

PNP open collector

Output operation

Light-ON / Dark-ON selectable

Supply voltage

10–30 V DC

Current consumption

30 mA max.

Maximum load voltage

30 V DC

Maximum load current

100 mA

Residual voltage

1 V max. below 10 mA load; 2 V max. at 10–100 mA

Response time

1 ms max.

IO-Link version

1.1

IO-Link baud rate

COM2, 38.4 kbps

Minimum cycle time

2.3 ms

Cable length

2 m

Protection rating

IP67

Housing material

PBT

Lens material

Modified polyarylate

Operating temperature

−25°C to +55°C

Storage temperature

−40°C to +70°C

Operating humidity

35–85% RH, non-condensing

Weight

Approx. 65 g, packaged
