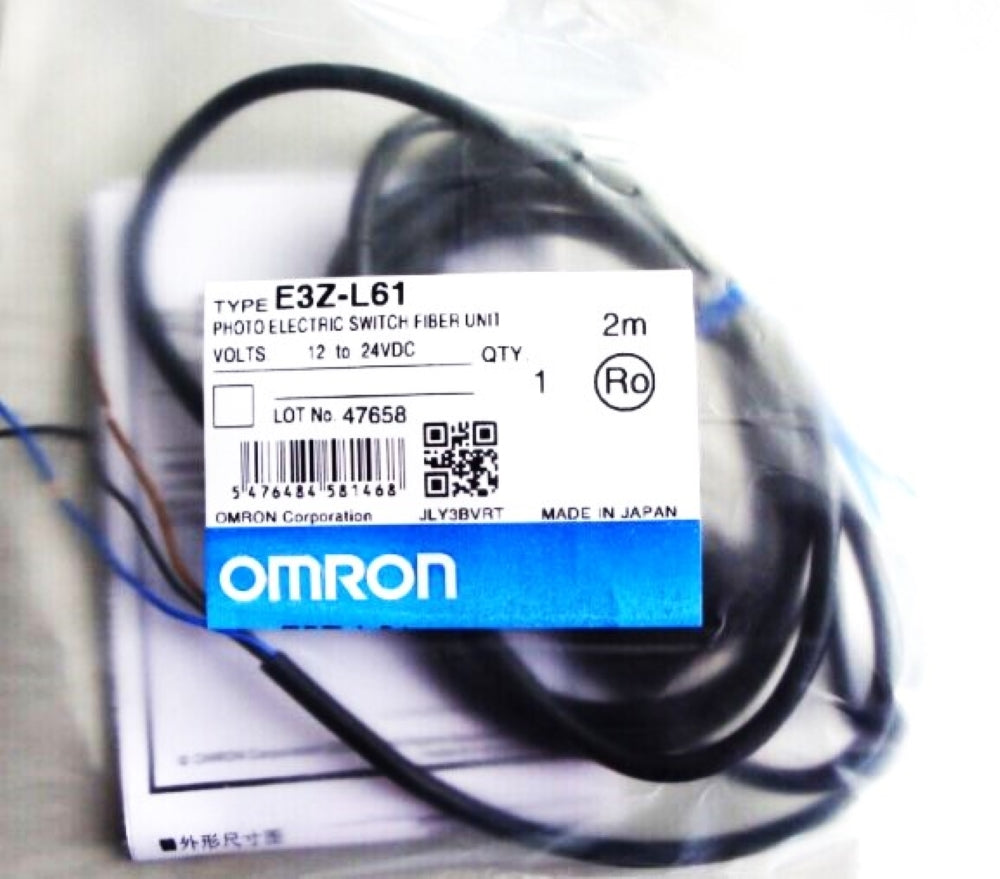

E3Z-L61 Omron Photoelectric Sensor

Brand

Omron

Model Number

E3Z-L61

Product Type

Photoelectric Sensor

Shape

Rectangular Cuboid

Sensing Method

Narrow Beam Diffuse Reflective

Sensing Distance

90 ± 30 mm

Minimum Sensing Distance

60 mm

Standard Sensing Object

White Paper 100 × 100 mm

Output Type

NPN

Output Configuration

Open Collector

Output Mode

Light ON and Dark ON Selectable

Supply Voltage

12 to 24 VDC ±10%

Current Consumption

30 mA Max

Maximum Load Current

100 mA

Light Source

Red LED

Wavelength

650 nm

Spot Diameter

2.5 mm Typical

Minimum Detectable Object

0.1 mm Copper Wire Typical

Response Time

1 ms Max

Connection Type

Pre Wired Cable

Standard Cable Length

2 m

Housing Material

PBT

Lens Material

Modified Polyarylate

Protection Rating

IP67

Operating Temperature

-25°C to +55°C

Sensitivity Adjustment

One Turn Adjuster

Dimensions W × H × D

10.8 × 31 × 20 mm

Switching Frequency

Not specified in the cited model data

Mounting

Mounting Bracket Required
