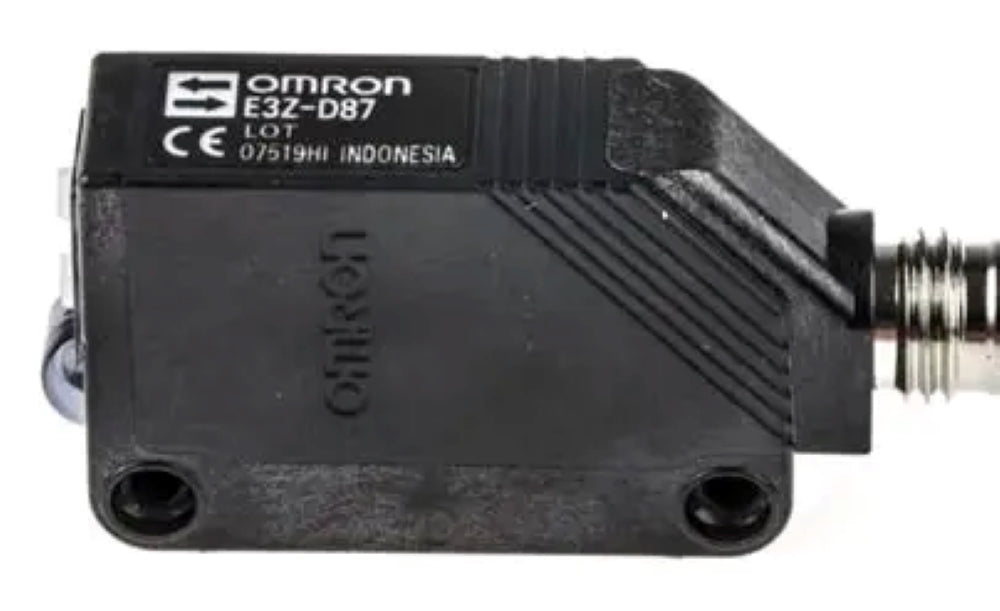

E3Z-D87 OMRON PHOTOELECTRIC SENSOR

Model Number

E3Z-D87

Brand

Omron

Sensor Type

Photoelectric Sensor

Sensing Method

Diffuse Reflective

Sensing Distance

1 m (1000 mm)

Standard Sensing Object

White paper, 300 × 300 mm

Shape

Rectangular / Cuboid

Output Type

PNP Open Collector

Output Mode

Light-ON / Dark-ON selectable

Light Source

Infrared LED

Wavelength

860 nm

Supply Voltage

12–24 VDC ±10%

Current Consumption

30 mA max.

Maximum Load Current

100 mA

Maximum Load Voltage

26.4 VDC

Response Time

1 ms max.

Connection Type

M8, 4-pin connector

Cable Length

Depends on the mating connector cable

Housing Material

PBT plastic

Lens Material

Modified polyarylate

Protection Rating

IP67

Sensitivity Adjustment

Single-turn adjuster

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Operating Temperature

−30°C to +55°C

Differential Travel

20% max. of sensing distance

Feature

Wide-beam detection

Indicators

Orange operation indicator and green stability indicator
