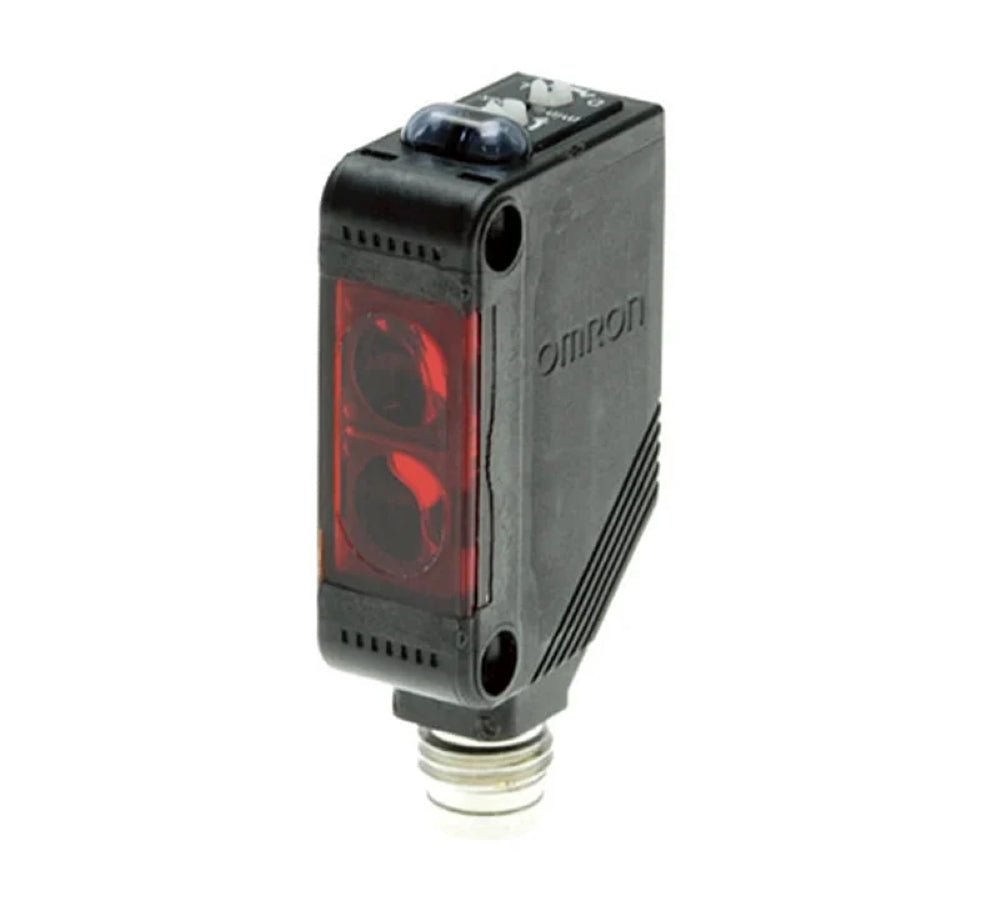

E3Z-D87-IL3 Omron Photoelectric Sensor

Model

E3Z-D87-IL3

Sensing method

Diffuse-reflective

Sensing distance

1,000 mm (1 m)

Standard target

White paper, 300 × 300 mm

Light source

Infrared LED, 870 nm

Output type

PNP open collector + IO-Link

Output operation

Light-ON / Dark-ON selectable

Supply voltage

10–30 V DC

Current consumption

30 mA max.

Maximum load voltage

30 V DC

Maximum load current

100 mA

Response time

1 ms max.

IO-Link version

1.1

IO-Link baud rate

COM3, 230.4 kbps

Minimum cycle time

1 ms

Hysteresis

20% max. of sensing distance

Connection

M8, 4-pin connector

Housing material

PBT

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Protection rating

IP67

Operating temperature

−25°C to +55°C

Storage temperature

−40°C to +70°C

Short-circuit protection

Yes

Reverse-polarity protection

Yes
