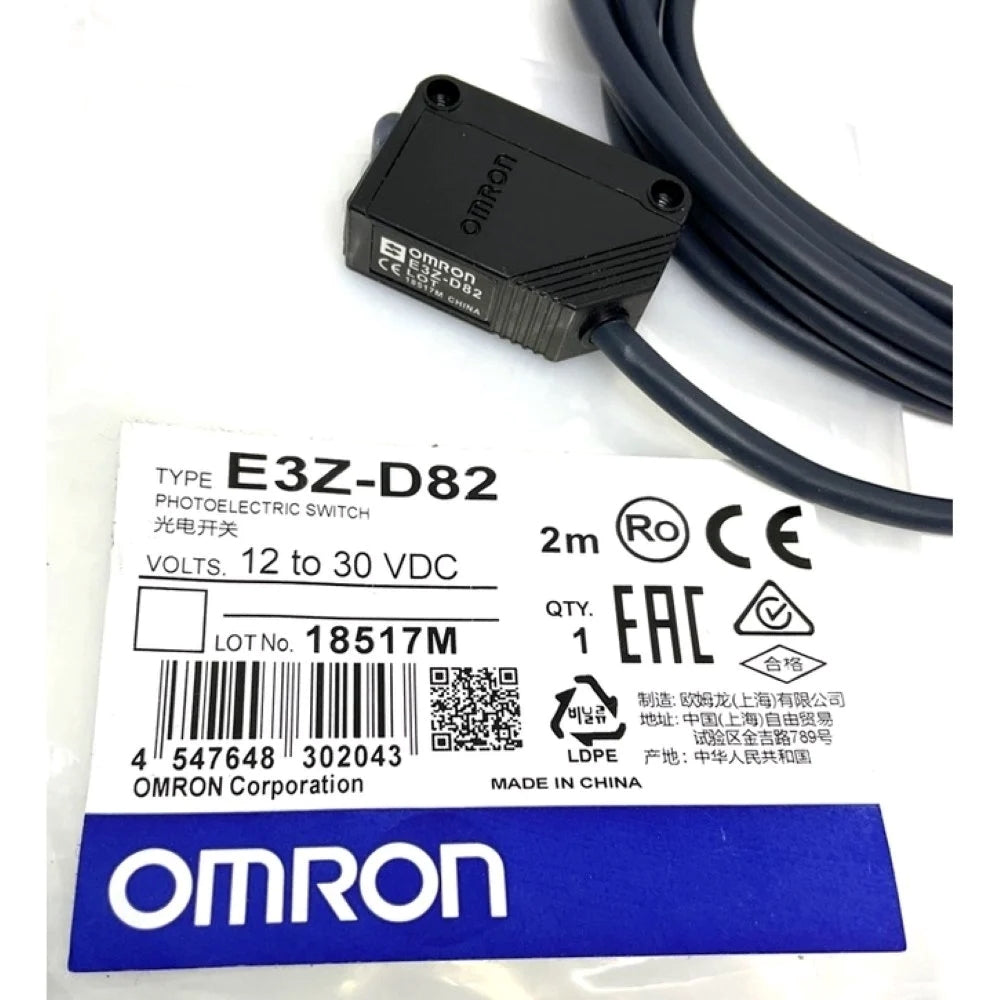

E3Z-D82 Omron Photoelectric Sensor
| Specification | Details |
|---|---|
| Brand | Omron |
| Model | E3Z-D82 |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Diffuse Reflective |
| Sensing Distance | 1 m (1000 mm) |
| Standard Sensing Object | White paper, 300 × 300 mm |
| Shape | Rectangular / Cuboid |
| Output Type | PNP Open Collector |
| Output Mode | Light-ON / Dark-ON selectable |
| Light Source | Infrared LED |
| Wavelength | 860 nm |
| Supply Voltage | 12–24 VDC ±10% |
| Maximum Load Current | 100 mA |
| Response Time | 1 ms max. |
| Connection | Pre-wired cable |
| Standard Cable Length | 2 m |
| Housing Material | PBT |
| Lens Material | Modified polyarylate |
| Protection Rating | IP67 |
| Sensitivity Adjustment | One-turn adjuster |
| Dimensions (W × H × D) | 10.8 × 31 × 20 mm |
| Operating Temperature | −25°C to +55°C |
| Feature | Wide-beam detection |
| Differential Travel | 20% max. of setting distance |
