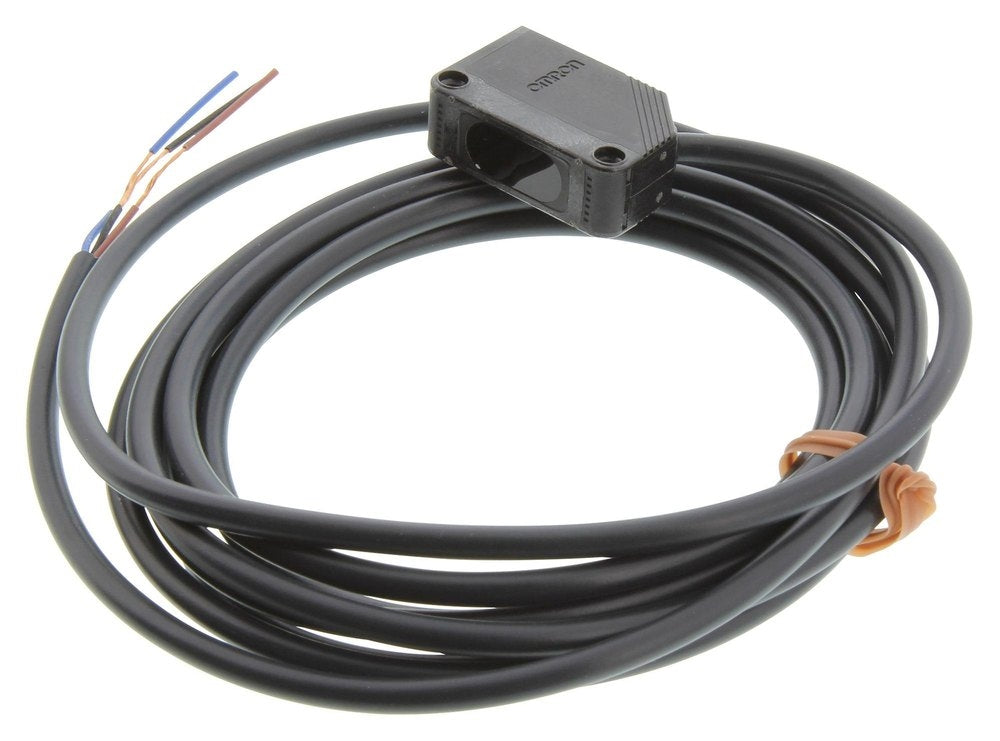

E3Z-D82-IL2 Omron Photoelectric Sensor

Model

E3Z-D82-IL2

Sensing method

Diffuse-reflective

Sensing distance

1 m (300 × 300 mm white paper)

Light source

Infrared LED, 870 nm

Output type

PNP open collector

Output mode

Light-ON / Dark-ON selectable

Supply voltage

10–30 V DC

Current consumption

30 mA max.

Maximum load voltage

30 V DC

Maximum load current

100 mA

Response time

1 ms max.

IO-Link version

1.1

IO-Link baud rate

COM2, 38.4 kbps

Minimum cycle time

2.3 ms

Differential distance

20% max. of sensing distance

Sensitivity adjustment

Manual adjuster and IO-Link

Connection

Pre-wired cable

Cable length

2 m

Housing material

PBT plastic

Protection rating

IP67

Operating temperature

−25°C to +55°C

Storage temperature

−40°C to +70°C

Operating humidity

35–85% RH, non-condensing

Shape

Rectangular, compact

Short-circuit protection

Yes

Reverse-polarity protection

Yes
