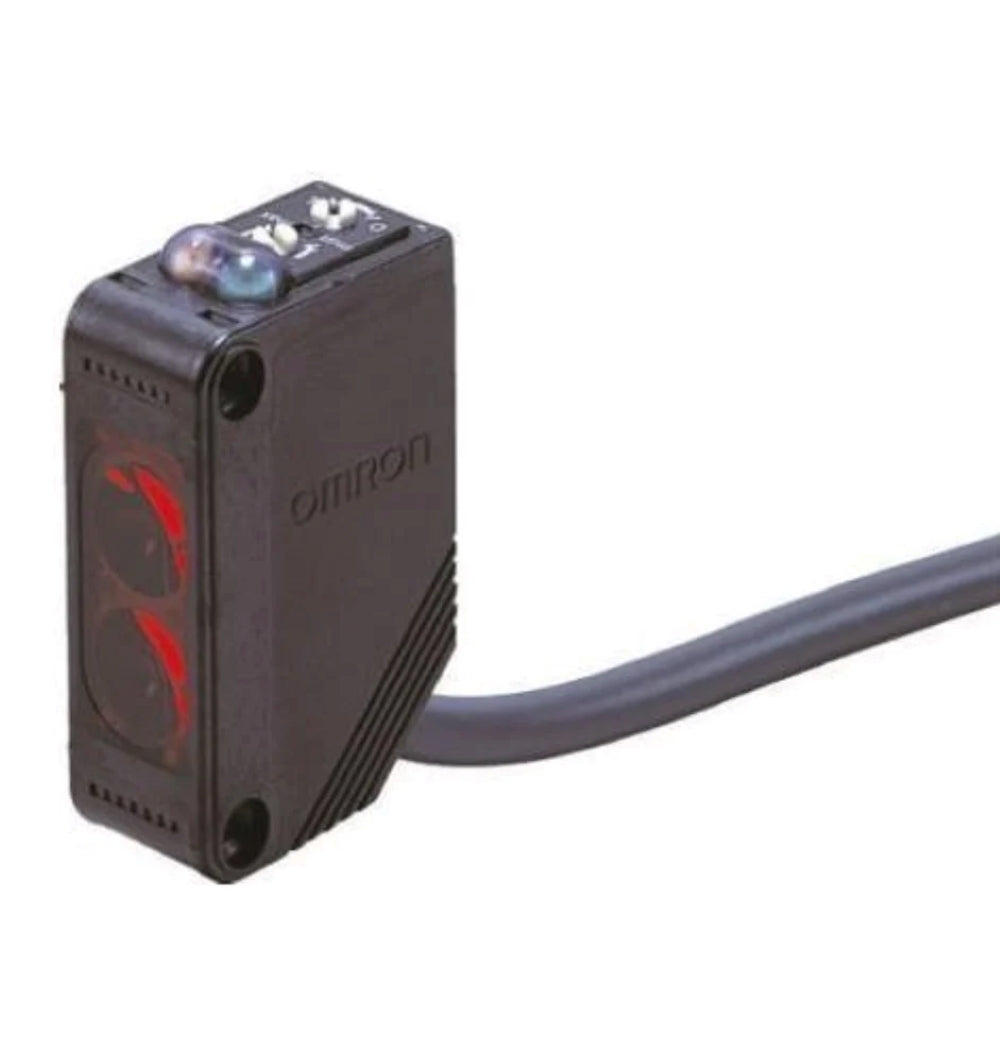

E3Z-D81K Omron Photoelectric Sensor
| Specification | E3Z-D81K |
|---|---|
| Brand | Omron |
| Series | E3Z |
| Model | E3Z-D81K |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Diffuse-reflective |
| Sensing Distance | 100 mm |
| Standard Target | White paper, 100 × 100 mm |
| Output Type | PNP Open Collector |
| Output Mode | Light-ON / Dark-ON selectable |
| Light Source | Infrared LED |
| Wavelength | 860 nm |
| Supply Voltage | 12–24 VDC ±10% |
| Current Consumption | 30 mA max. |
| Control Output | 100 mA max. |
| Response Time | 1 ms max. |
| Sensitivity Adjustment | One-turn adjuster |
| Protection Rating | IP67 |
| Oil Resistance | Yes |
| Connection | Pre-wired cable |
| Standard Cable Length | 2 m |
| Housing Material | PBT |
| Lens Material | Modified polyarylate |
| Shape | Square / rectangular |
| Ambient Temperature | -25 to +55°C |
| Ambient Humidity | 35–85% RH |
| Weight | Approx. 65 g with 2 m cable |
| Indicator | Orange operation + green stability indicator |
