HELIX AUTOMATION SOLUTION

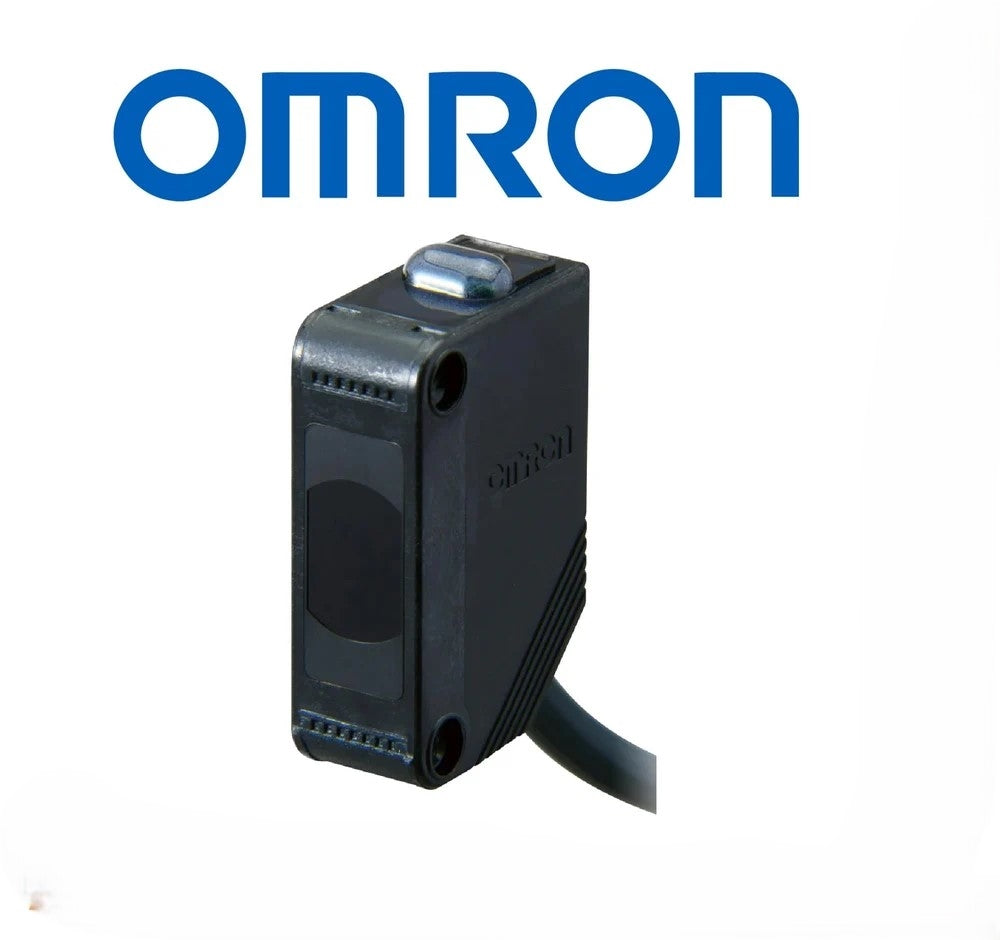

E3Z-D81K-M3J Omron Photoelectric Sensor
E3Z-D81K-M3J Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-D81K-M3J Omron Photoelectric Sensor
| Specification | E3Z-D81K-M3J |
|---|---|
| Brand | Omron |
| Series | E3Z |
| Model | E3Z-D81K-M3J |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Diffuse Reflective |
| Sensing Distance | 100 mm |
| Standard Target | White paper 100 × 100 mm |
| Light Source | Infrared LED |
| Wavelength | 860 nm |
| Output | PNP Open Collector |
| Output Mode | Light-ON / Dark-ON selectable |
| Supply Voltage | 12–24 VDC ±10% |
| Current Consumption | 30 mA max. |
| Control Output | 100 mA max. |
| Response Time | 1 ms max. |
| Sensitivity Adjustment | Single-turn adjustment |
| Connection | M8 pigtail connector, 4-pin |
| Cable Length | 0.3 m |
| Protection | IP67 |
| Oil Resistance | Yes |
| Housing Material | PBT |
| Lens Material | Modified polyarylate |
| Shape | Cuboid / rectangular |
| Dimensions | 10.8 × 31 × 20 mm |
| Operating Temperature | -25 to +55°C |
| Stability Indicator | Green |
| Operation Indicator | Orange |
