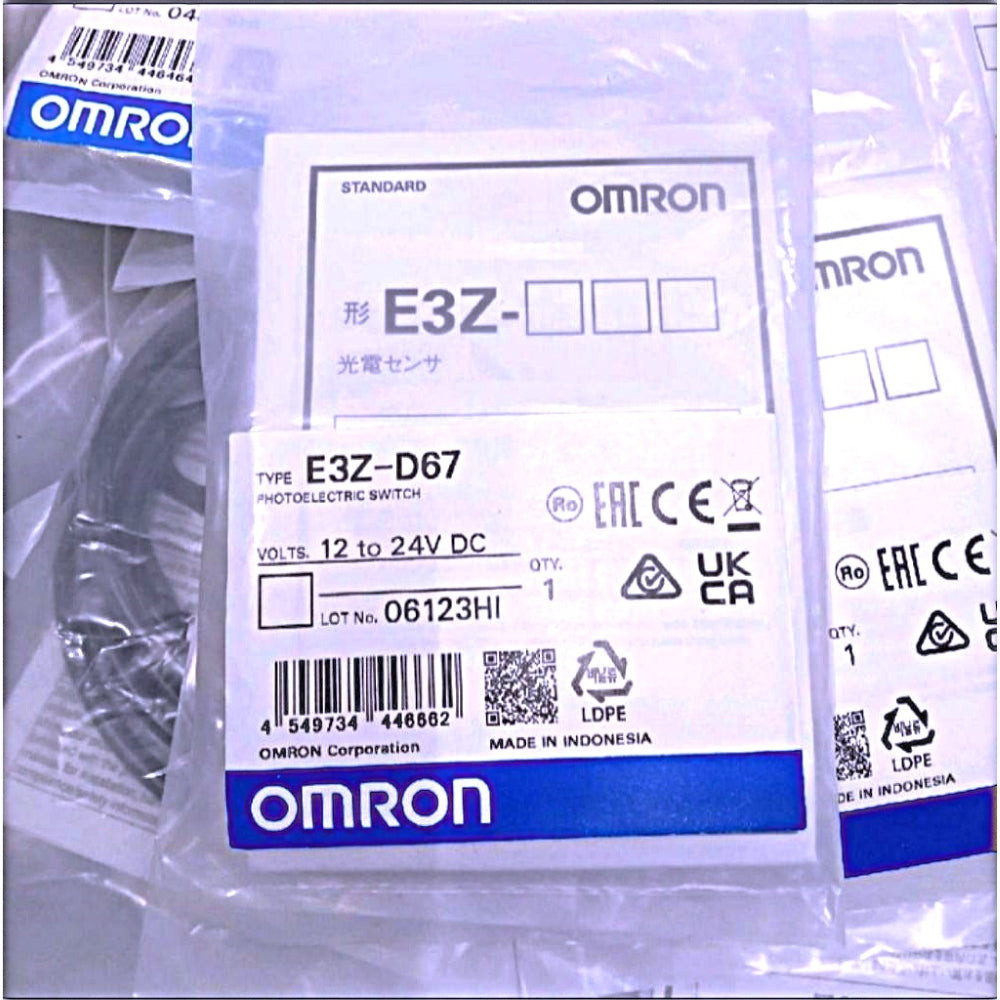

E3Z-D67 Omron Photoelectric Sensor

Model Number

E3Z-D67

Brand

Omron

Sensor Type

Photoelectric Sensor

Sensing Method

Diffuse Reflective

Sensing Distance

1 m

Standard Sensing Object

White paper, 300 × 300 mm

Shape

Rectangular / Cuboid

Output Type

NPN Open Collector

Output Mode

Light-ON / Dark-ON selectable

Light Source

Infrared LED

Wavelength

860 nm

Supply Voltage

12–24 VDC ±10%

Current Consumption

30 mA maximum

Maximum Load Current

100 mA

Maximum Load Supply Voltage

26.4 VDC

Response Time

1 ms maximum

Connection Type

M8, 4-pin connector

Cable Length

Depends on the mating connector cable

Housing Material

PBT plastic

Lens Material

Modified polyarylate

Protection Rating

IP67

Sensitivity Adjustment

Single-turn adjuster

Dimensions (W × H × D)

10.8 × 31 × 20 mm

Operating Temperature

−30°C to +55°C

Differential Travel

20% maximum of sensing distance

Special Feature

Wide-beam detection
