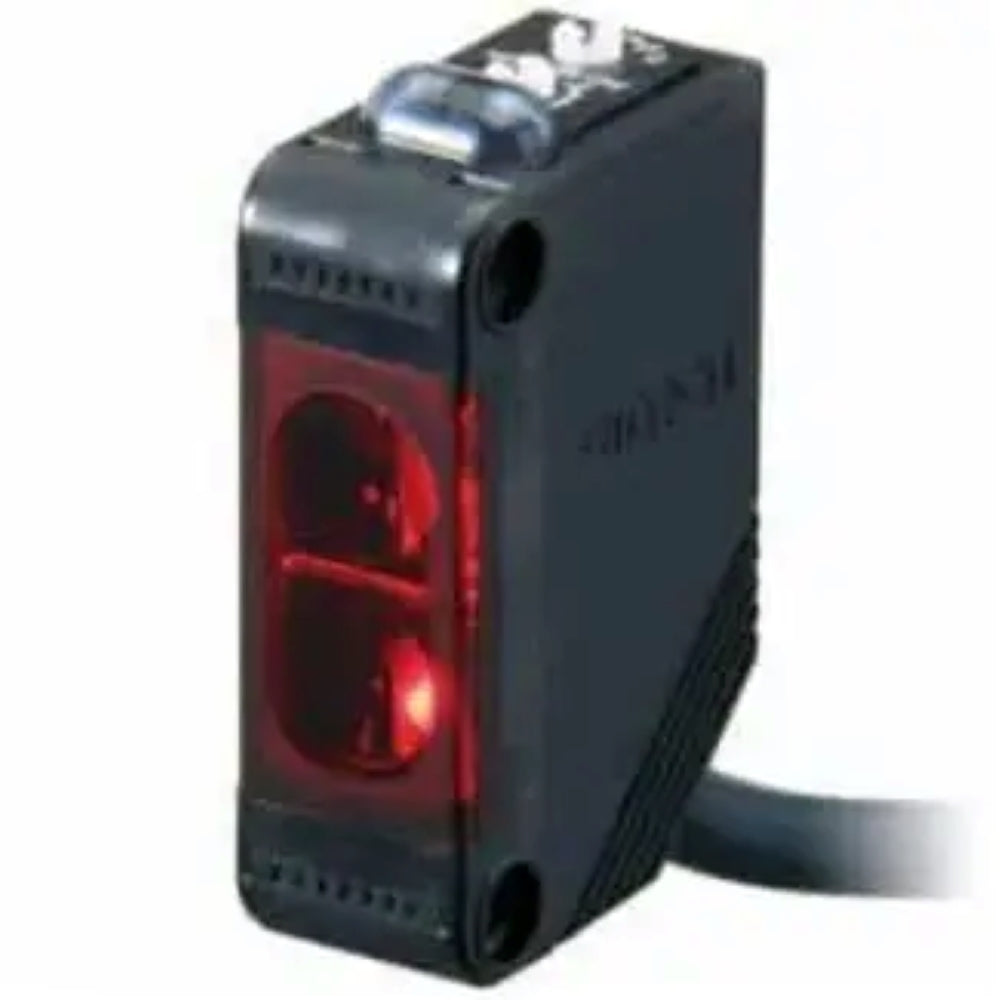

E3Z-D61K-M3J Omron Photoelectric Sensor
E3Z-D61K-M3J Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-D61K-M3J Omron Photoelectric Sensor
| Specification | Details |
|---|---|
| Brand | Omron |
| Model | E3Z-D61K-M3J |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Diffuse-Reflective |
| Sensing Distance | 100 mm |
| Standard Sensing Object | White paper 100 × 100 mm |
| Output Type | NPN Open Collector |
| Output Mode | Light-ON / Dark-ON selectable |
| NO / NC | Selectable by Light-ON / Dark-ON |
| Light Source | Infrared LED |
| Wavelength | 860 nm |
| Supply Voltage | 12–24 VDC ±10% |
| Current Consumption | 30 mA max. |
| Control Output | 26.4 VDC max., 100 mA max. |
| Response Time | 1 ms max. |
| Sensitivity Adjustment | Single-turn adjustment |
| Connection | M8 pre-wired connector |
| Cable Length | 0.3 m |
| Protection Rating | IP67 |
| Oil Resistance | Yes, oil-resistant type |
| Shape | Square / Rectangular |
| Housing Material | PBT |
| Lens Material | Modified Polyarylate |
| Operating Temperature | -25 to +55°C |
| Storage Temperature | -40 to +70°C |
| Operating Humidity | 35–85% RH |
| Indicator | Orange operation indicator + Green stability indicator |
| Weight | Approx. 30 g packaged |
