HELIX AUTOMATION SOLUTION

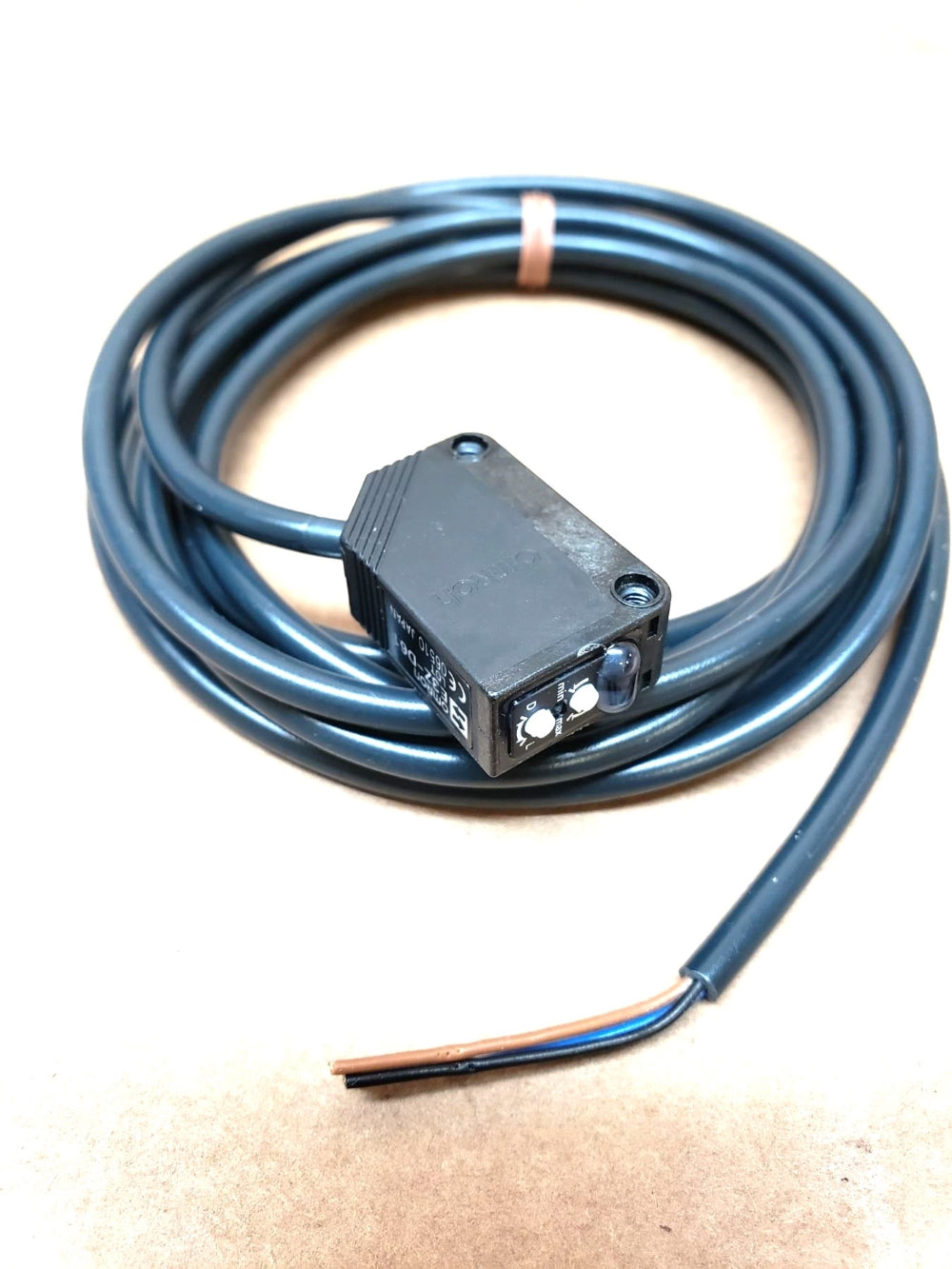

E3Z-D61K Omron Photoelectric Sensor
E3Z-D61K Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-D61K Omron Photoelectric Sensor
| Specification | E3Z-D61K |
|---|---|
| Brand | Omron |
| Model | E3Z-D61K |
| Sensor Type | Photoelectric Sensor |
| Sensing Method | Diffuse-Reflective |
| Sensing Distance | 100 mm |
| Standard Sensing Object | White paper, 100 × 100 mm |
| Output Type | NPN Open Collector |
| Output Mode | Light-ON / Dark-ON selectable |
| NO / NC | Selectable through Light-ON / Dark-ON operation |
| Light Source | Infrared LED |
| Wavelength | 860 nm |
| Supply Voltage | 12–24 VDC ±10% |
| Current Consumption | 30 mA max. |
| Response Time | 1 ms max. |
| Differential Travel | 20% max. of sensing distance |
| Connection | Pre-wired cable |
| Standard Cable Length | 2 m |
| Protection Rating | IP67 |
| Oil Resistance | Yes |
| Housing Material | PBT |
| Lens Material | Modified polyarylate |
| Shape | Square / Rectangular compact |
| Sensitivity Adjustment | Single-turn adjustment |
| Operating Temperature | -25 to +55°C |
| Storage Temperature | -40 to +70°C |
| Protection Circuits | Reverse power supply, output short-circuit and reverse output polarity protection |
