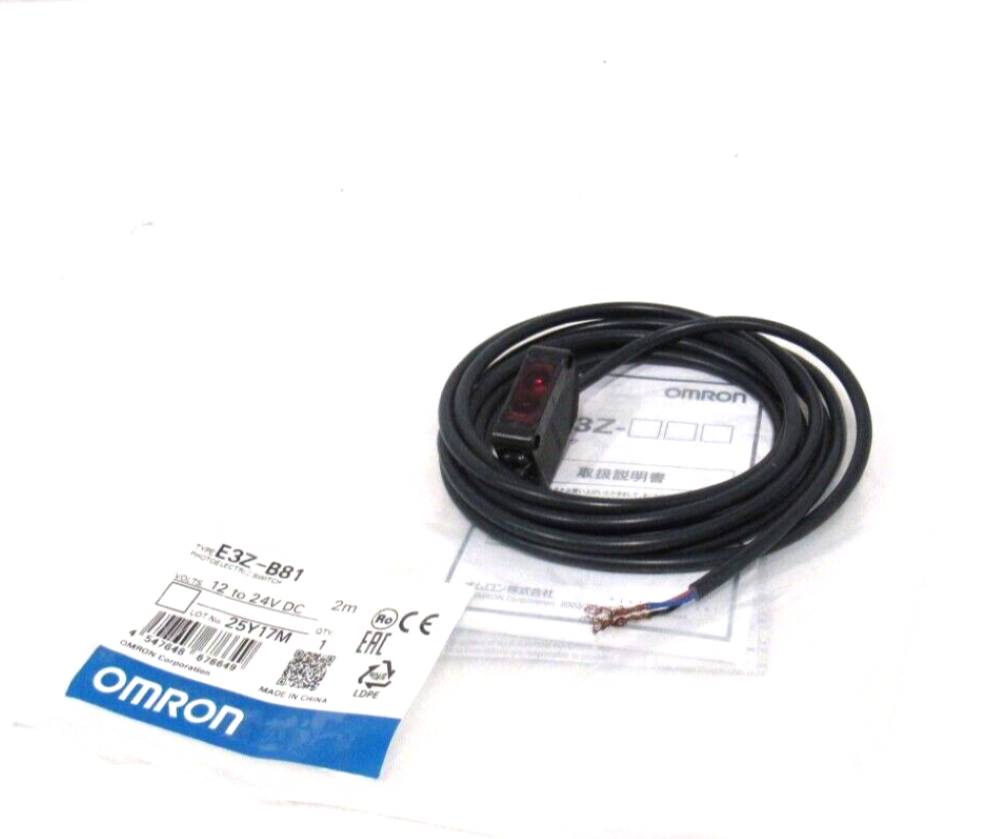

E3Z-B81 Omron Photoelectric Sensor

Name: E3Z-B81 Omron Photoelectric Sensor
Brand: HELIX AUTOMATION SOLUTION
Price: 900.00 INR
Availability: InStock

Rs. 900.00 INR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Parameter	Specification
Brand	Omron
Model	E3Z-B81
Product Type	Photoelectric Sensor
Shape	Square / Cuboid
Sensing Method	Retro-reflective, without MSR
Application	Transparent / clear plastic bottle detection
Sensing Distance	80 to 500 mm
Rated Sensing Distance	500 mm
Reflector	E39-R1S
Standard Sensing Object	Opaque object, 75 mm dia. min.
Transparent Object	Glass cylinder, 15 mm dia., 1.1 mm thickness, 50 mm length
Light Source	Red LED
Wavelength	660 nm
Output Type	PNP Open Collector
Operation Mode	Light-ON / Dark-ON selectable
Supply Voltage	12 to 24 VDC ±10%
Current Consumption	30 mA max.
Load Voltage	26.4 VDC max.
Load Current	100 mA max.
Response Time	1 ms max.
Sensitivity Adjustment	One-turn adjuster
Connection	Pre-wired cable
Cable Length	2 m standard
Housing Material	PBT
Lens Material	Modified Polyarylate
Protection Rating	IP67
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to +70°C
Operating Humidity	35% to 85% RH
Dimensions W × H × D	10.8 × 31 × 20 mm
Weight	Approx. 65 g with 2 m cable
Indicator	Orange operation indicator + green stability indicator
