HELIX AUTOMATION SOLUTION

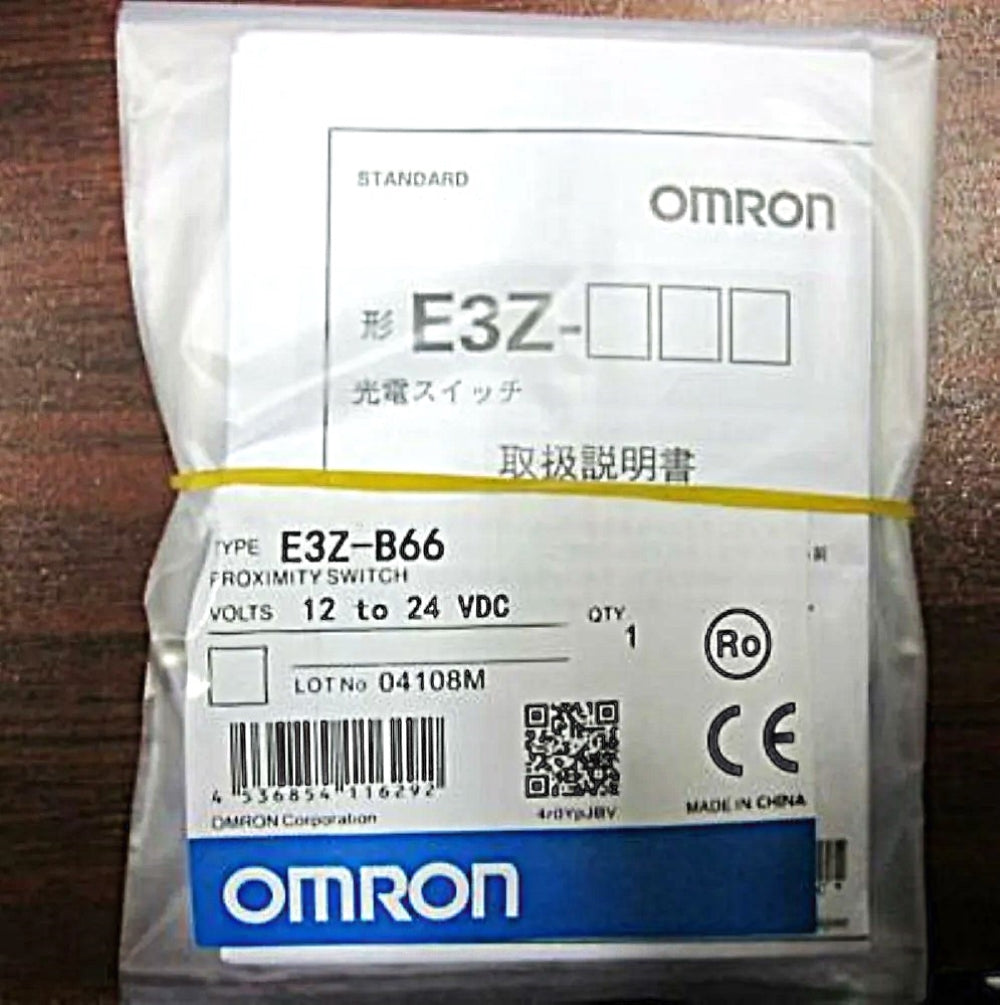

E3Z-B66 Omron Photoelectric Sensor
E3Z-B66 Omron Photoelectric Sensor
Regular price
Rs. 900.00 INR
Regular price
Sale price
Rs. 900.00 INR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
E3Z-B66 Omron Photoelectric Sensor
| Parameter | Specification |
|---|---|
| Brand | Omron |
| Model | E3Z-B66 |
| Product Type | Photoelectric Sensor |
| Shape | Cuboid / Rectangular |
| Sensing Method | Retro-reflective, without MSR |
| Application | Transparent / clear plastic bottle detection |
| Sensing Distance | 80 to 500 mm |
| Rated Sensing Distance | 500 mm |
| Reflector | E39-R1S |
| Minimum Sensor-Reflector Distance | 80 mm |
| Standard Sensing Object | 500 ml transparent round plastic bottle, approx. 65 mm diameter |
| Light Source | Red LED |
| Wavelength | 660 nm |
| Output Type | NPN Open Collector |
| Operation Mode | Light-ON / Dark-ON selectable |
| Supply Voltage | 12 to 24 VDC ±10% |
| Current Consumption | 30 mA max. |
| Load Voltage | 26.4 VDC max. |
| Load Current | 100 mA max. |
| Response Time | 1 ms max. |
| Sensitivity Adjustment | One-turn adjuster |
| Connection | M8 4-pin connector |
| Cable | Connector type, cable not included |
| Housing Material | PBT |
| Lens Material | Modified Polyarylate |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 35% to 85% RH |
| Dimensions W × H × D | 10.8 × 31 × 20 mm |
| Weight | Approx. 20 g |
| Indicator | Orange operation indicator + green stability indicator |
